  • Modular Design

  • Highly Integrated

  • Ultra Lightweight

  • High Security

  • High Reliability

Technical Highlights

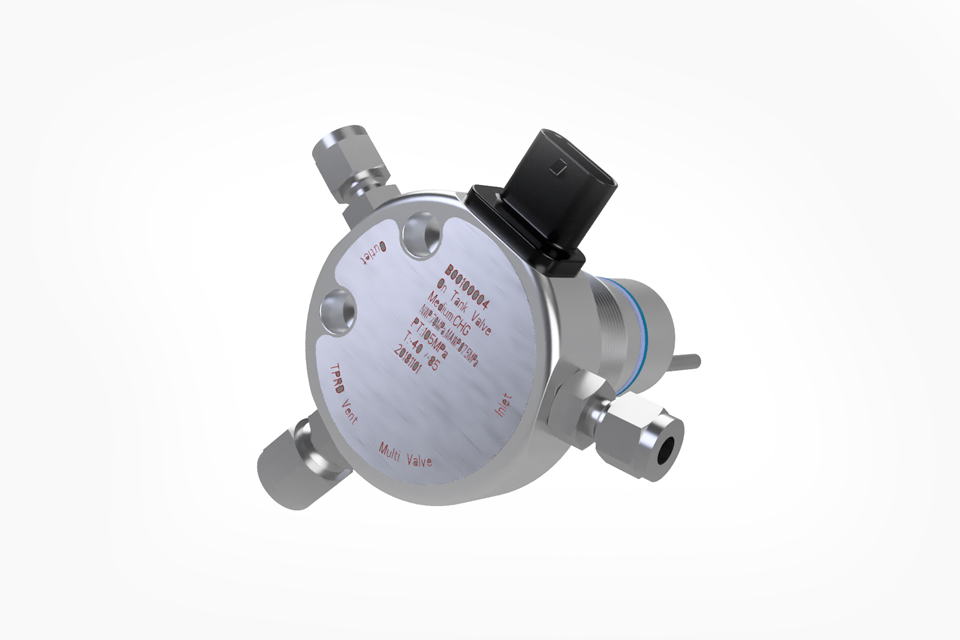

    Miniaturization, lightweight and integrated design

    The valve body is made of high strength aluminum alloy with hydrogen embrittlement resistance and light weight.

    Electronic shut-off valve adopt built-in way to reduce the external size of the valve body, protect the electronic shut-off valve from external environment and impact, and improve product reliability.



    Integration includes temperature sensor, bleed valve, manual valve, electronic shut-off valve, TPRD, excess flow valve, filter, etc

    modularization and universal design.

    Modular design is used in interior for easy maintenance and replacement parts.

    Compatible with 35 Mpa and 70 Mpa, Ⅲ type tank and Ⅳ type tank, high pressure design.



    Low-cost (manufacturability) design

    Optimizing the design of valve body structure, reducing the number of parts and reducing the manufacturing cost.


Product Parameters

Items

Parameters

Items

Parameters

Applied Medium

Hydrogen

Maximum Transient Power Consumption

≤6W

Valve body material

Al6061-T6

Filling Cycle Life

≥15,000次

Rated   Working Pressure

70MPa

Temperature Sensor

Type

NTC

Maximum Allowable Working Pressure

87.5MPa

Rated Working Voltage

5±0.5VDC

Testing Pressure

105MPa

Temperate Range

-60℃~120℃

Burst Pressure

＞175MPa

TPRD

Type

Glass Bubble

Minimum working pressure

2MPa

Activated Temperature

110±5℃

Working Environment Temperature

-40~+85℃

Bleed Diameter

Φ4.2mm

Filtering Accuracy

10μm

Electronic Shut-Off Valve

Working Voltage

12±4VDC

Leakage Rate

≤10Ncc/h(H2)
